Dissipation

GRANAD supports two dissipation models: A phenomenological dissipator, given by

where \(\rho_0\) is the equilibrium density matrix and \(1 / \tau\) a phenomenological relaxation rate.

To model dissipation in greater depth, GRANAD makes available also a Lindblad dissipation model. The mathematical details are laid out in Pelc et al., 2024 and revolve around the following equation

where \(\gamma_{ij}\) is the transition rate from state i to state j and \(f\) is a relaxation functional to counteract problems related to the Pauli principle breaking that might occur in the single-particle model. GRANAD's default relaxation functional suppresses population growth if the population approaches a limiting value of 2. It is given by a sigmoid

where x is the occupation and \(\beta\) a temperature-like control parameter to mimick a smooth Heaviside function, defaulting to 1e-6.

Lindblad vs Phenomenological Relaxation dynamics of the Metallic Chain

In the following, we will consider a metallic chain with a uniform transition rate, such that of \(\gamma_{ij} = \gamma\) for all \(i \gt j\). We consider an initially excited state of one electron in the HOMO-LUMO+1 transition.

from granad import MaterialCatalog

flake = MaterialCatalog.get("chain").cut_flake( 6 )
flake.set_excitation(flake.homo, flake.homo+2, 1)
flake.show_energies()

We can now build the matrix of transition rates with a uniform \(\gamma = 10\) as follows

delta = flake.energies[:,None] - flake.energies
gamma = 10.
gamma_matrix = gamma * (delta > 0)

We can inspect the lumo-homo transition rate, for example, as

print(gamma_matrix[flake.homo+1, flake.homo])

10.0

GRANAD dispatches the non-Hermitian functional depending on the relaxation_rate input type. If you pass a float, GRANAD uses the decoherence approximation. If you pass an array, it uses the Lindblad dissipator with a (smooth approximation of) the Heaviside function as the saturation functional. Modifications of the relaxation functional are discussed below.

We now integrate the master equation.

result = flake.master_equation(relaxation_rate = gamma_matrix,
                               end_time = 0.2,
                               density_matrix = ['occ_e'],
                               )

RHS compiled
RHS compiled


100.0 %

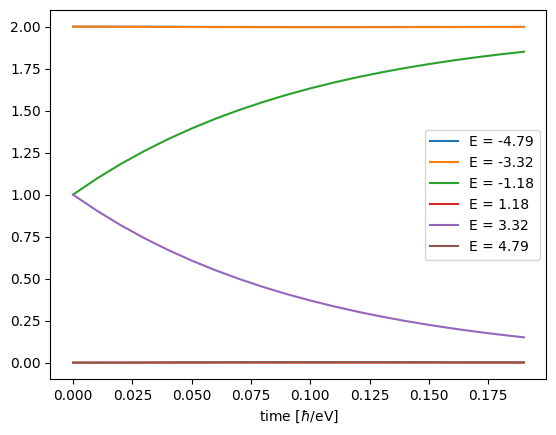

We plot the changes in single-particle energy occupations as a function of time by defining the plot_labels argument as the energies

labels = [f"E = {e:.2f}" for e in flake.energies]
flake.show_res(result, show_illumination=False, plot_labels = labels)

A comparison to to the phenomenological approach can be obtained by

result = flake.master_equation(relaxation_rate = gamma,
                               end_time = 0.2,
                               density_matrix = ['occ_e'],
                               )
flake.show_res(result, show_illumination=False, plot_labels = labels)

RHS compiled
RHS compiled


100.0 %

By comparing the two plots above, we observe a set of qualitative differences, discussed in greater detail in the corresponding paper.

GRANAD imposes a degeneracy tolerance on the states. This means that all states separated by less than a numerical threshold are considered degenerate. The threshold is specified as variable flake.params.eps.

Modifying the saturation functional

The saturation functional can be customized by defining a saturation function and modifying the dissipator dict (for more information, please consult the tutorial on custom time evolution).

1. initialize a dissipator with your custom relaxation functional
2. pass relaxation_rate = gamma_matrix as usual

To illustrate the necessity of introducing a saturation functional, we consider the case where no saturation is applied, i.e. \(f(x) = 1\)

import jax.numpy as jnp
def no_saturation(x):
    return 1.

dissipator = flake.get_dissipator(saturation = no_saturation)

result = flake.master_equation(relaxation_rate = gamma_matrix,
                               dissipator = dissipator,
                               end_time = 1,
                               density_matrix = ['occ_e'],
                               )
flake.show_res(result, show_illumination=False, plot_labels = labels)

RHS compiled
RHS compiled


100.0 %

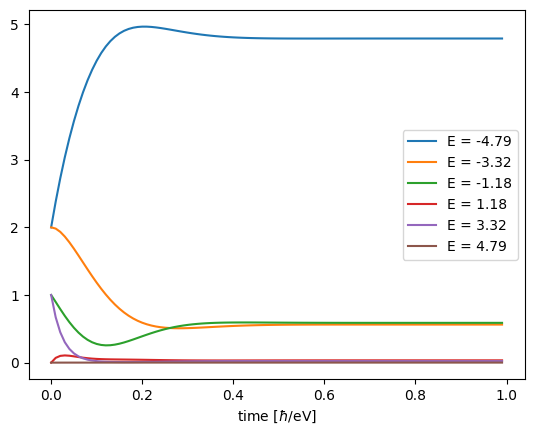

We observe an almost complete collapse into the single-particle ground state. The nonzero stationary occupation of excited states can be revealed to be an Coulomb interaction effect.

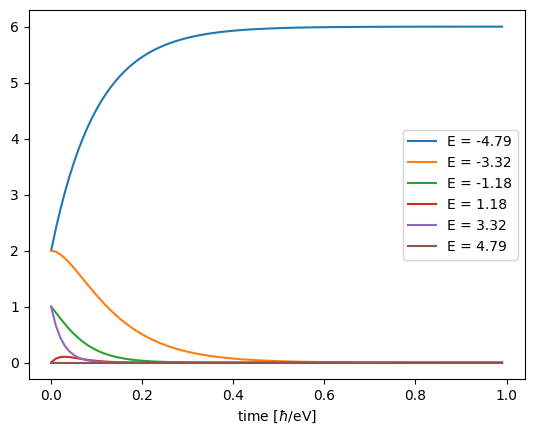

result = flake.master_equation(relaxation_rate = gamma_matrix,
                               dissipator = dissipator,
                               end_time = 1,
                               density_matrix = ['occ_e'],
                               coulomb_strength = 0. # turn off Coulomb interaction
                               )
flake.show_res(result, show_illumination=False, plot_labels = labels)

RHS compiled
RHS compiled


100.0 %

Wigner-Weisskopf transition rates

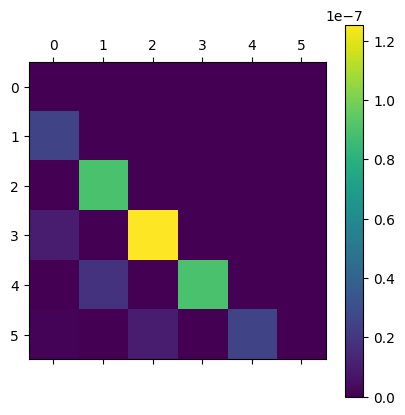

GRANAD offers the single-particle Wigner-Weisskopf transition rates that can be represented directly in a matrix form. The "ij" matrix element corresponds to the relaxation rate from the state i to j.

import matplotlib.pyplot as plt
gamma_matrix = flake.wigner_weisskopf_transition_rates
plt.matshow(gamma_matrix)
plt.colorbar()
plt.show()
