Defining Materials
We talk about how to modify built-in materials and define custom ones.
Defining a custom material
Let's first look at the Material class itself
Represents a material in a simulation, encapsulating its physical properties and interactions.
Attributes:
name (str): The name of the material.
species (dict): Dictionary mapping species names to their quantum numbers and associated atoms.
Each species is defined with properties like spin quantum number (s), and the atom type.
orbitals (defaultdict[list]): A mapping from species to lists of orbitals. Each orbital is represented
as a dictionary containing the orbital's position and an optional tag
for further identification.
interactions (defaultdict[dict]): Describes the interactions between orbitals within the material.
Each interaction is categorized by type (e.g., 'hamiltonian', 'Coulomb'),
and includes the participants, parameters like
[onsite, offsite_nearest_neighbor, offsite_next_to_nearest_neighbor, ...], and
an optional mathematical expression defining the interaction for the coupling beyound
the len(parameters) - th nearest neighbor.
Note:
The `Material` class is used to define a material's structure and properties step-by-step.
An example is constructing the material graphene, with specific lattice properties,
orbitals corresponding to carbon's p_z orbitals, and defining hamiltonian and Coulomb interactions
among these orbitals.
```python
graphene = (
Material("graphene")
.lattice_constant(2.46)
.lattice_basis([
[1, 0, 0],
[-0.5, jnp.sqrt(3)/2, 0]
])
.add_orbital_species("pz", atom='C')
.add_orbital(position=(0, 0), tag="sublattice_1", species="pz")
.add_orbital(position=(-1/3, -2/3), tag="sublattice_2", species="pz")
.add_interaction(
"hamiltonian",
participants=("pz", "pz"),
parameters=[0.0, -2.66],
)
.add_interaction(
"coulomb",
participants=("pz", "pz"),
parameters=[16.522, 8.64, 5.333],
expression=lambda r : 1/r + 0j
)
)
```
The Material class offers all specialized functions to specify a material from a TB model. A preliminary, work-in-progress version of the Hubbard model would look like this
t = 1. # nearest-neighbor hopping
U = 0.1 # onsite coulomb repulsion
hubbard = (
Material("Hubbard")
.lattice_constant(1.0)
.lattice_basis([
[1, 0, 0],
[0, 1, 0],
[0, 0, 1]
])
.add_orbital_species("up", s = -1)
.add_orbital_species("down", s = 1)
.add_orbital(position=(0, 0, 0), species = "up")
.add_orbital(position=(0, 0, 0), species = "down")
.add_interaction(
"hamiltonian",
participants=("up", "up"),
parameters=[0.0, t],
)
.add_interaction(
"hamiltonian",
participants=("down", "down"),
parameters=[0.0, t],
)
.add_interaction(
"coulomb",
participants=("up", "down"),
parameters=[U]
)
)
To see how cutting finite flakes from this 3D material works, let's inspect
Help on method cut_flake in module granad.materials:
cut_flake() method of granad.materials.Material instance
Finalizes the material construction by defining a method to cut a flake of the material,
according to the material's dimensions like this
1D material : materials.cut_flake_1d
2D material : materials.cut_flake_2d
3D material and higher : materials.cut_flake_generic
This method is intended to be called after all material properties (like lattice constants,
basis, orbitals, and interactions) have been fully defined.
Note:
This method does not take any parameters and does not return any value. Its effect is
internal to the state of the Material object and is meant to prepare the material for
simulation by implementing necessary final structural adjustments.
So, the cut_flake method is automatically determined. We have specified a 3D material, so let's look at the function that is applied
Help on function cut_flake_generic in module granad.materials:
cut_flake_generic(material, grid_range)
Cuts a flake from the material using a specified grid range. This method is generic and can be applied
to materials of any dimensionality.
The function calculates the positions of orbitals within the unit cell, projects these onto the full
lattice based on the provided grid range, and ensures that each position is unique. The result is a list
of orbitals that are correctly positioned within the defined grid.
Parameters:
material (Material): The material instance from which to cut the flake.
grid_range (list of tuples): Each tuple in the list specifies the range for the grid in that dimension.
For example, [(0, 10), (0, 5)] defines a grid that extends from 0 to 10
in the first dimension and from 0 to 5 in the second dimension.
Returns:
list: A list of orbitals within the specified grid range, uniquely positioned.
Note:
The grid_range parameter should be aligned with the material's dimensions and lattice structure,
as mismatches can lead to incorrect or inefficient slicing of the material.
Let's see this in action
flake = hubbard.cut_flake( [(0,3), (0,3), (0,3)] ) # 3*3*3 = 27 unit cells, 3 in every direction, each hosting spin up and spin down atom

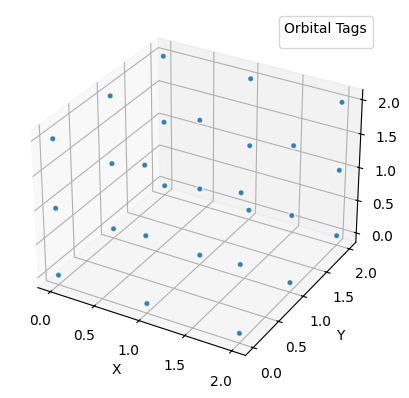

flake.show_3d()
No artists with labels found to put in legend. Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
Direction-dependent couplings
Up to now, we have only considered couplings dependent on the scalar distance between two orbitals. They can also be given as direction-dependent functions, like in Slater-Koster orbitals. To this end, replace the neighbor coupling list by another list, where each entry specifies the coupling as [d_x, d_y, d_z, coupling], where d_i are the distance vector components. The example below illustrates this for a preliminary, work-in-progress version of the Haldane model of graphene.
import jax.numpy as jnp
delta, t1, t2 = 0.2, -2.66, 1j + 1
haldane_graphene = (
Material("haldane_graphene")
.lattice_constant(2.46)
.lattice_basis([
[1, 0, 0],
[-0.5, jnp.sqrt(3)/2, 0]
])
.add_orbital_species("pz1", atom='C')
.add_orbital_species("pz2", atom='C')
.add_orbital(position=(0, 0), tag="sublattice_1", species="pz1")
.add_orbital(position=(-1/3, -2/3), tag="sublattice_2", species="pz2")
.add_interaction(
"hamiltonian",
participants=("pz1", "pz2"),
parameters= [t1],
)
.add_interaction(
"hamiltonian",
participants=("pz1", "pz1"),
# a bit overcomplicated
parameters=[
[0, 0, 0, delta], # onsite
# clockwise hoppings
[-2.46, 0, 0, t2],
[2.46, 0, 0, jnp.conj(t2)],
[2.46*0.5, 2.46*jnp.sqrt(3)/2, 0, t2],
[-2.46*0.5, -2.46*jnp.sqrt(3)/2, 0, jnp.conj(t2)],
[2.46*0.5, -2.46*jnp.sqrt(3)/2, 0, t2],
[-2.46*0.5, 2.46*jnp.sqrt(3)/2, 0, jnp.conj(t2)]
],
)
.add_interaction(
"hamiltonian",
participants=("pz2", "pz2"),
parameters=[
[0, 0, 0, 0],
[-2.46, 0, 0, jnp.conj(t2)],
[2.46, 0, 0, t2],
[2.46*0.5, 2.46*jnp.sqrt(3)/2, 0, jnp.conj(t2)],
[-2.46*0.5, -2.46*jnp.sqrt(3)/2, 0, t2],
[2.46*0.5, -2.46*jnp.sqrt(3)/2, 0, jnp.conj(t2)],
[-2.46*0.5, 2.46*jnp.sqrt(3)/2, 0, t2]
],
)
.add_interaction(
"coulomb",
participants=("pz1", "pz2"),
parameters=[8.64],
)
.add_interaction(
"coulomb",
participants=("pz1", "pz1"),
parameters=[16.522, 5.333],
)
.add_interaction(
"coulomb",
participants=("pz2", "pz2"),
parameters=[16.522, 5.333],
)
)
We now display the edge state
import jax.numpy as jnp
flake_topological = haldane_graphene.cut_flake(Rectangle(20, 20))
idx = jnp.argwhere(jnp.abs(flake_topological.energies) < 1e-1)[0].item()
flake_topological.show_2d( display = flake_topological.eigenvectors[:, idx], scale = True )
Modifying existing materials
You can copy the material you want to modify and change/overwrite its attributes. As an example, we will turn our ordinary graphene model into a direction-independent variant of the Haldane model by introducing complex nnn hoppings and without the staggered onsite potential
from copy import deepcopy
graphene = MaterialCatalog.get("graphene")
graphene_haldane_variant = deepcopy(graphene)
graphene_haldane_variant.add_interaction("hamiltonian", participants = ('pz', 'pz'), parameters = [0, 1.0, 1j*0.1])
print(graphene_haldane_variant)
Material: graphene
Lattice Constant: 2.46 Å
Lattice Basis:
[[ 1. 0. 0. ]
[-0.5 0.8660254 0. ]]
Orbital Species:
pz characterized by (n,l,m,s, atom name) = (0, 'C')
Orbitals:
Position: (0, 0), Tag: sublattice_1, Species: pz
Position: (-0.3333333333333333, -0.6666666666666666), Tag: sublattice_2, Species: pz
Interactions:
Type: hamiltonian, Participants: ('pz', 'pz'):
NN Couplings: 0, 1.0, 0.1j
Other neighbors:
Returns a zero coupling constant as a complex number.
Args:
d (float): A parameter (typically representing distance or some other factor) that is ignored by the function, as the output is always zero.
Returns:
complex: Returns 0.0 as a complex number (0.0j).
Type: coulomb, Participants: ('pz', 'pz'):
NN Couplings: 16.522, 8.64, 5.333
Other neighbors: Coupling with a (regularized) Coulomb-like potential
Handling non-periodic dimensions
Say you want to have a custom ssh chain with 2 atoms in the unit cell, but displace one of the atoms in y-direction. You do this by including a second basis vector in y-direction and give the atom you want to displace a non-vanishing y-coordinate. To not get a 2D lattice, you have to specify explicitly which direction(s) you want to be periodically repeated.
_ssh_modified = (
Material("ssh")
.lattice_constant(2.46)
.lattice_basis([
[1, 0, 0],
[0, 1, 0],
],
periodic = [0]) # THIS IS THE LINE
.add_orbital_species("pz", atom='C')
.add_orbital(position=(0,0), tag="sublattice_1", species="pz")
.add_orbital(position=(0.8,0.1), tag="sublattice_2", species="pz")
.add_interaction(
"hamiltonian",
participants=("pz", "pz"),
parameters=[0.0, 1 + 0.2, 1 - 0.2],
)
.add_interaction(
"coulomb",
participants=("pz", "pz"),
parameters=[16.522, 8.64, 5.333],
expression=lambda d: 14.399 / d + 0j
)
)
flake = _ssh_modified.cut_flake( unit_cells = 10)

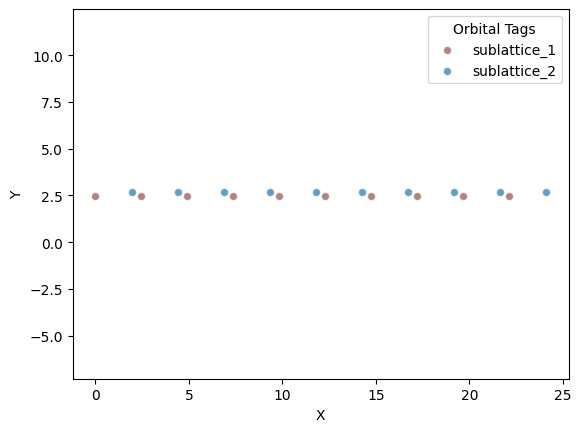

flake.show_2d()

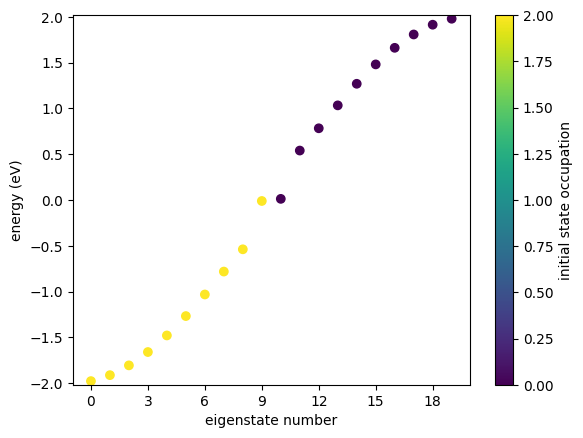

flake.show_energies()
