from granad import *
graphene = MaterialCatalog.get("graphene") # MaterialCatalog.available() lists all materials

flake = graphene.cut_flake(Triangle(10, armchair = True)) # more shapes available or define arbitrary polygons

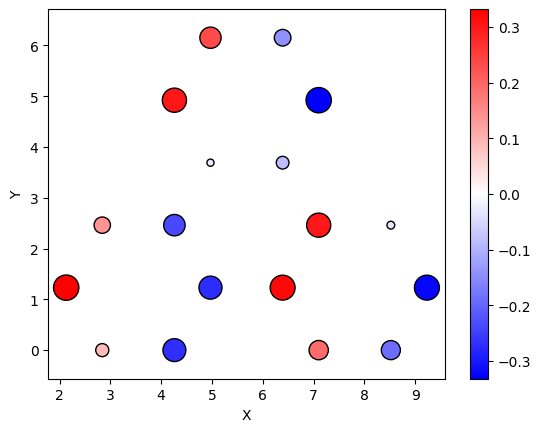

flake.show_2d( display = flake.eigenvectors[:, flake.homo] ) # electron amplitudes in the single-particle HOMO state
flake.set_excitation(from_state = flake.homo, to_state = flake.lumo + 1, excited_electrons = 1) # N-electron initial state is set with a single electron excited from the homo to the lumo+1 level; by default, GRANAD sets the number of p_z electrons in graphene to be equal to the number of atomic sites. In case of degeneracy, GRANAD distributes electrons equally among states of the same energy.

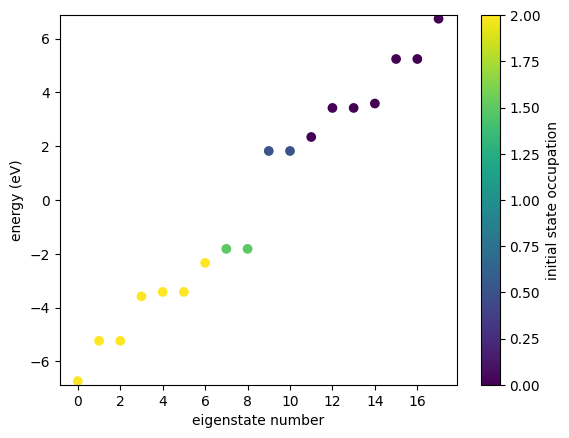

flake.show_energies() # energies

# examples of physical quantities
print("pz hopping between 0th and 2nd site", flake.hamiltonian[0,2])
print("0-th site occupation in SITE basis", flake.initial_density_matrix.diagonal()[0])
print("homo occupation in ENERGY basis", flake.initial_density_matrix_e.diagonal()[flake.homo])  # adding "_e" to the names observables gives access to their elements in the energy basis
print("HOMO-LUMO x-dipole", flake.dipole_operator_e[0, flake.homo, flake.lumo]) # 0th, i.e. x-component of the dipole moment element between the HOMO and LUMO states

# customization
onsite, nn, nnn = [0, -2., 0.1] # This fragment defines the tight-binding Hamiltonian elements: [onsite, nearest-neighbor, next-nearest-neighbor, etc.] - you can define a longer list to include hopping among more distant neighbors
new_hoppings = [onsite, nn, nnn]
custom_graphene = MaterialCatalog.get("graphene", hoppings = new_hoppings) # pass your own hoppings
flake = custom_graphene.cut_flake(Triangle(10))

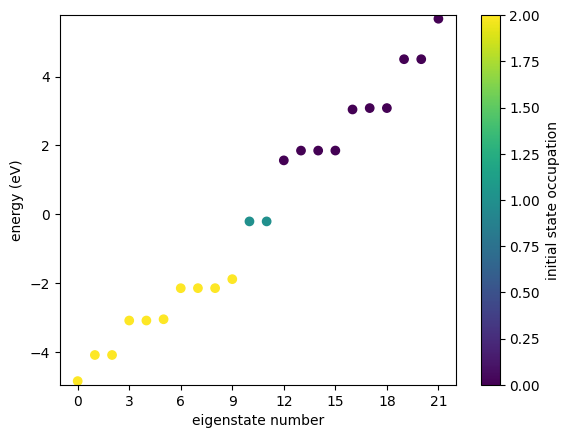

flake.show_energies() # energies

# Time-domain (TD) simulations provide time-resolved density matrix that represents the state of an average electron in an N-electron flake. Note that for graphene, the tight-binding approach in GRANAD accounts for p_z electrons. Similar limitations apply to other materials.
# Below, we illuminate the flake with a spectrally-broad pulse of electromagnetic radiation. The dynamics of the electronic density matrix is found based on the master equation, which in the example below is used to evaluate the induced polarization as the expectation value of the time-dependent dipole moment. A Fourier transform provides the absorption spectrum.

# pulsed field
pulse = Pulse(
    amplitudes=[1e-5, 0, 0], frequency=2.3, peak=5, fwhm=2) # for details of Pulse-type illumination and GRANAD units, see the corresponding documentation sections

# time evolution
result = flake.master_equation(
    expectation_values = [ flake.dipole_operator ],  # compute expectation values of physical quantities
    end_time=40,
    relaxation_rate=1/10,
    illumination=pulse,
)
# spectral range where the absorption cross section should be computed:
omega_max = 4
omega_min = 0
p_omega = result.ft_output( omega_max, omega_min )[0] # polarization in the frequency domain
omegas_td, pulse_omega = result.ft_illumination( omega_max, omega_min ) # illuminating field in the frequency domain
absorption_td = jnp.abs( -omegas_td * jnp.imag( p_omega[:,0] / pulse_omega[:,0] ) ) # absorption cross section evaluated based on the time-domain simulation

# RPA
# GRANAD provides another method to evaluate the absorption cross section , based on the random phase approximation, as detailed in  [Thongrattanasiri et al.](https://pubs.acs.org/doi/10.1021/nn204780e)
omegas_rpa = omegas_td
polarizability = flake.get_polarizability_rpa(
    omegas_rpa,
    relaxation_rate = 1/10,
    polarization = 0,
    hungry = 2 )
absorption_rpa = jnp.abs( polarizability.imag * 4 * jnp.pi * omegas_rpa )

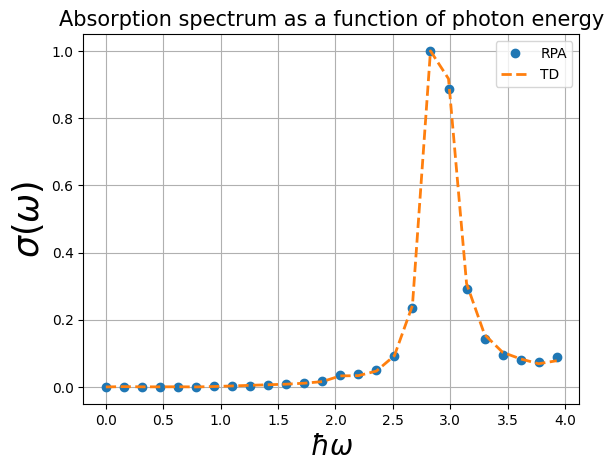

# Below, absorption cross sections obtained with the two methods are compared.
import matplotlib.pyplot as plt
plt.plot(omegas_rpa, absorption_rpa / jnp.max(absorption_rpa), 'o', linewidth=2, label = 'RPA')
plt.plot(omegas_td, absorption_td / jnp.max(absorption_td), linewidth=2, ls = '--', label = 'TD' )
plt.xlabel(r'$\hbar\omega$', fontsize=20)
plt.ylabel(r'$\sigma(\omega)$', fontsize=25)
plt.title('Absorption spectrum as a function of photon energy', fontsize=15)
plt.legend()
plt.grid(True)
plt.show()
