Welcome to GRANAD

GRANAD (GRAphene Nanoflakes with ADatoms) is a tight-binding simulation utility geared towards the exploration of systems at the intersection of solid state physics and quantum optics.

Features

  • Computes electronic and optical properties
  • Time-evolution of density matrix calculated via master equation
  • Relies on JAX for performance and differentiability

Installation

Linux

The recommended way is to install with (mini-)conda.

First, set up miniconda: https://docs.anaconda.com/free/miniconda/index.html

Then, create a new environment

conda create -n granad 'python'

Activate the environment

conda activate granad

Now, optionally install jupyter.

Finally, install the package with

pip install git+https://github.com/GRANADlauncher/granad.git

Windows

To install on Windows, set up WSL first. Then, follow the instructions above.

Quickstart

In the following, we demonstrate how to compute the absorption spectrum in a triangular zigzag graphene flake in the random phase approximation (RPA). The code is listed below:

import jax.numpy as jnp
from granad import MaterialCatalog, Triangle

# get material
graphene = MaterialCatalog.get( "graphene" )

# cut a 15 Angström wide triangle from the lattice (can also be an arbitrary polygon)
flake = graphene.cut_flake( Triangle(15)  )

# frequencies
omegas = jnp.linspace( 0, 5, 100 )

# compute the polarizability in the RPA
polarizability = flake.get_polarizability_rpa(
    omegas,
    relaxation_rate = 1/10,
    polarization = 0,
    hungry = 2 # higher numbers are faster and consume more RAM
)

# from the imaginary part of polarizability, obtain the absorption spectrum
absorption = polarizability.imag * 4 * jnp.pi * omegas

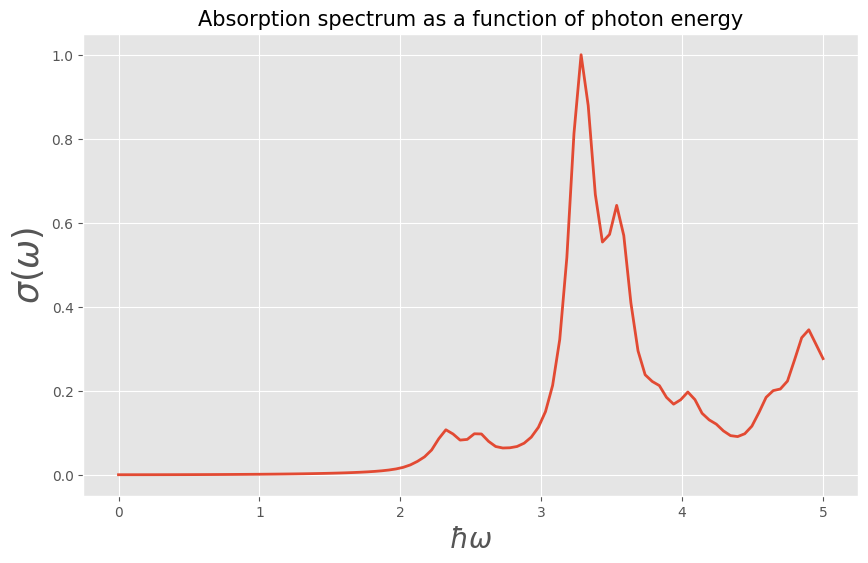

Plot the results

import matplotlib.pyplot as plt
plt.style.use('ggplot')
plt.figure(figsize=(10, 6))
plt.plot(omegas, absorption / jnp.max(absorption), linewidth=2)
plt.xlabel(r'$\hbar\omega$', fontsize=20)
plt.ylabel(r'$\sigma(\omega)$', fontsize=25)
plt.title('Absorption spectrum as a function of photon energy', fontsize=15)
plt.grid(True)

png
